03 · CustomPainter & Drawing

Sometimes no combination of widgets produces what you need: a chart, a signature pad, a gauge, a custom progress ring. CustomPaint gives you a Canvas and a size and lets you draw anything — lines, paths, shapes, gradients, text, images. This lesson builds a sparkline chart, unit-tests its math, measures when it repaints (with a surprise), makes it visible to screen readers, and locks its appearance with a golden test.

The sparkline

painter_demo.dart

import 'dart:math' as math;
import 'package:flutter/material.dart';

/// A sparkline with a highlighted maximum and a filled area under the line.
class Sparkline extends StatelessWidget {
  const Sparkline({super.key, required this.values, this.color = Colors.indigo});
  final List<double> values;
  final Color color;

  @override
  Widget build(BuildContext context) => Semantics(
        // A canvas is invisible to screen readers unless you describe it.
        label: 'Trend of ${values.length} values, from ${values.first} to ${values.last}, peak ${values.reduce(math.max)}',
        child: CustomPaint(
          size: const Size(double.infinity, 80),
          painter: SparklinePainter(values: values, color: color),
        ),
      );
}

class SparklinePainter extends CustomPainter {
  SparklinePainter({required this.values, required this.color});
  final List<double> values;
  final Color color;

  /// Maps data index/value to canvas coordinates. Public so it can be unit-tested.
  static List<Offset> project(List<double> values, Size size, {double padding = 4}) {
    final minV = values.reduce(math.min), maxV = values.reduce(math.max);
    final range = maxV - minV == 0 ? 1.0 : maxV - minV;
    final w = size.width - 2 * padding, h = size.height - 2 * padding;
    return [
      for (var i = 0; i < values.length; i++)
        Offset(
          padding + (values.length == 1 ? w / 2 : w * i / (values.length - 1)),
          padding + h * (1 - (values[i] - minV) / range), // canvas y grows downward
        ),
    ];
  }

  @override
  void paint(Canvas canvas, Size size) {
    if (values.length < 2) return;
    final pts = project(values, size);

    final line = Path()..moveTo(pts.first.dx, pts.first.dy);
    for (final p in pts.skip(1)) {
      line.lineTo(p.dx, p.dy);
    }
    final area = Path.from(line)
      ..lineTo(pts.last.dx, size.height)
      ..lineTo(pts.first.dx, size.height)
      ..close();

    canvas.drawPath(
      area,
      Paint()
        ..shader = LinearGradient(
          begin: Alignment.topCenter,
          end: Alignment.bottomCenter,
          colors: [color.withValues(alpha: 0.35), color.withValues(alpha: 0.0)],
        ).createShader(Offset.zero & size),
    );
    canvas.drawPath(
      line,
      Paint()
        ..color = color
        ..style = PaintingStyle.stroke
        ..strokeWidth = 2
        ..strokeJoin = StrokeJoin.round,
    );
    final peak = values.indexOf(values.reduce(math.max));
    canvas.drawCircle(pts[peak], 4, Paint()..color = Colors.deepOrange);
    paints++;
  }

  /// Counts paint() calls across all instances, so tests can observe repaints.
  static int paints = 0;

  @override
  bool shouldRepaint(SparklinePainter old) => old.color != color || !_sameValues(old.values, values);

  static bool _sameValues(List<double> a, List<double> b) {
    if (identical(a, b)) return true;
    if (a.length != b.length) return false;
    for (var i = 0; i < a.length; i++) {
      if (a[i] != b[i]) return false;
    }
    return true;
  }
}

The anatomy of a painter:

• paint(Canvas canvas, Size size) draws. The origin is the top-left of the CustomPaint's box, x grows right and y grows down — hence 1 - normalized when mapping values to heights.
• Paint objects carry style: colour or shader, style (fill/stroke), strokeWidth, joins and caps.
• Path builds shapes from moveTo/lineTo/quadraticBezierTo/arcTo… The area fill reuses the line path (Path.from) and closes it along the bottom edge.
• shouldRepaint(old) is asked whenever a new painter instance is given to the CustomPaint. Return true only if what you'd draw has changed. Comparing values element by element matters: the caller will usually pass a new List each build, so != on the lists would always be true.
• The math is a pure static function (project) — the most bug-prone part is testable without a canvas.

Tests

painter_test.dart

import 'package:flutter/material.dart';
import 'package:flutter_test/flutter_test.dart';
import 'package:l2/a/painter_demo.dart';

void main() {
  test('project(): data space -> canvas space', () {
    final pts = SparklinePainter.project([10, 30, 20], const Size(108, 58));
    print(pts.map((o) => '(${o.dx}, ${o.dy})').join(' '));
    print('flat line: ${SparklinePainter.project([5, 5], const Size(108, 58)).map((o) => o.dy).toList()}');
  });

  testWidgets('repaints only when the data changes', (tester) async {
    Widget app(List<double> v, String title, {bool boundary = false}) => MaterialApp(
          home: Scaffold(
            appBar: AppBar(title: Text(title)),
            body: boundary ? RepaintBoundary(child: Sparkline(values: v)) : Sparkline(values: v),
          ),
        );
    SparklinePainter.paints = 0;
    await tester.pumpWidget(app([1, 3, 2, 5, 4], 'a'));
    print('first frame: ${SparklinePainter.paints} paint');
    await tester.pumpWidget(app([1, 3, 2, 5, 4], 'b')); // new list, same values; title changed
    print('same values, new list: ${SparklinePainter.paints} paints');
    await tester.pumpWidget(app([1, 3, 2, 5, 9], 'b'));
    print('changed value: ${SparklinePainter.paints} paints');

    // Same experiment with the chart in its own layer.
    await tester.pumpWidget(const SizedBox());
    SparklinePainter.paints = 0;
    await tester.pumpWidget(app([1, 3, 2, 5, 4], 'a', boundary: true));
    await tester.pumpWidget(app([1, 3, 2, 5, 4], 'b', boundary: true));
    print('with RepaintBoundary, title changed: ${SparklinePainter.paints} paint');
    await tester.pumpWidget(app([1, 3, 2, 5, 9], 'b', boundary: true));
    print('with RepaintBoundary, value changed: ${SparklinePainter.paints} paints');
  });

  testWidgets('semantics label for screen readers', (tester) async {
    final handle = tester.ensureSemantics();
    await tester.pumpWidget(const MaterialApp(home: Sparkline(values: [12, 18, 9, 22])));
    print(tester.getSemantics(find.byType(CustomPaint).last).label);
    handle.dispose();
  });

  testWidgets('golden', (tester) async {
    tester.view.physicalSize = const Size(300, 100);
    tester.view.devicePixelRatio = 1;
    addTearDown(tester.view.reset);
    await tester.pumpWidget(const MaterialApp(
      debugShowCheckedModeBanner: false,
      home: Scaffold(body: RepaintBoundary(key: Key('g'), child: Padding(padding: EdgeInsets.all(10), child: Sparkline(values: [3, 7, 4, 9, 6, 11, 8, 5, 10, 7])))),
    ));
    await expectLater(find.byKey(const Key('g')), matchesGoldenFile('goldens/sparkline.png'));
  });
}

$ flutter test test/a/painter_test.dart
(4.0, 54.0) (54.0, 4.0) (104.0, 29.0)
flat line: [54.0, 54.0]
first frame: 1 paint
same values, new list: 2 paints
changed value: 3 paints
with RepaintBoundary, title changed: 1 paint
with RepaintBoundary, value changed: 2 paints
Trend of 4 values, from 12.0 to 22.0, peak 22.0
00:00 +4: All tests passed!

Projection. With a 108×58 canvas and 4 px padding, the drawable area is 100×50. The minimum (10) lands at the bottom (y=54), the maximum (30) at the top (y=4), and 20 exactly halfway (y=29). A flat series doesn't divide by zero — the range == 0 guard puts it on the bottom line.

The surprise: shouldRepaint returned false, and it repainted anyway. Rebuilding with an equal list and a new AppBar title gave a second paint. shouldRepaint only controls whether this painter's change requests a repaint. But painting happens per layer: the AppBar title and the chart were in the same layer, so when the title's text changed and its layer was repainted, every render object in that layer painted again — including our chart. Wrapping the chart in a RepaintBoundary gives it its own layer: after that, a title change caused no chart paint (1 is from the first frame), and only the real data change did (2).

RepaintBoundary isn't free — each layer costs memory and compositing time — so use it around things that are expensive to paint and change at a different rate from their surroundings: charts, animations next to static content, a canvas the user draws on. Flutter DevTools' "Highlight repaints" toggle shows which areas repaint each frame (Level 4 · 02).

Semantics. A canvas is pixels; a screen reader has nothing to read. The Semantics(label: ...) wrapper describes the chart's content in words. (CustomPainter also has a semanticsBuilder for painters that contain several separately focusable regions.)

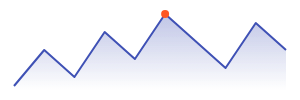

Golden. The golden test renders the chart at a fixed size:

The gradient, the stroke joins and the peak marker are all locked in. A change to project that, say, inverted the y-axis would fail this test even if every unit test still passed.

Other things a canvas can do

• canvas.drawArc, drawRRect, drawOval, drawImage, drawParagraph (text via TextPainter), drawVertices.
• canvas.save() / translate / rotate / scale / restore() to draw in a transformed coordinate space — for gauges and dials it's easier to rotate the canvas than to compute every point with trigonometry.
• canvas.clipPath / clipRect to restrict drawing.
• Paint.maskFilter = MaskFilter.blur(...) for soft shadows; BlendModes for compositing effects.
• CustomPaint(foregroundPainter: ...) paints over its child; painter: paints behind it.
• For per-frame animation, pass the Animation as the painter's repaint: argument (super(repaint: animation)) — the painter then repaints on each tick without rebuilding any widgets.

How It Actually Works

CustomPaint creates a RenderCustomPaint. In the paint phase, the framework walks render objects that need painting and gives each a PaintingContext with a Canvas that records drawing commands into a Picture (a display list) — nothing is rasterized yet. Pictures are attached to a tree of layers. A RepaintBoundary (or any render object with isRepaintBoundary) starts a new layer, and when one render object in a layer calls markNeedsPaint, the whole layer's picture is re-recorded. After painting, the layer tree is sent to the engine, where the raster thread (using the Impeller or Skia backend, depending on platform) turns pictures into pixels on the GPU.

When the widget is rebuilt with a new painter, RenderCustomPaint compares the new and old painter: if the runtime type differs or shouldRepaint returns true, it calls markNeedsPaint. If you passed repaint: (a Listenable), the render object listens to it directly and calls markNeedsPaint on each notification — bypassing the build phase entirely.

Common mistakes

• shouldRepaint always true for complex painters; or always false for painters whose inputs change (stale chart).
• Comparing lists with != in shouldRepaint — always different when callers build new lists.
• Forgetting y grows downward.
• Allocating heavy objects in paint that could be cached (e.g. building a TextPainter layout for unchanged labels each frame in an animation).
• No semantics for meaningful graphics.
• Unbounded size: CustomPaint with no child and no size inside an unconstrained parent gets zero size and paints nothing.

Exercise

1. Add a dashed horizontal line at the series average. (Hint: there's no dashed stroke — compute segments.)
2. Make the sparkline animate in: pass an Animation<double> as repaint: and draw only the first t fraction of the path (Path.computeMetrics() and extractPath). Confirm with a counter that no build runs during the animation.
3. Turn it into a gauge: an arc from 135° to 405° with a needle, drawn by rotating the canvas. Add a golden test.
4. Add touch: wrap in a GestureDetector, find the nearest point to a tap with project, and show its value in a tooltip.
